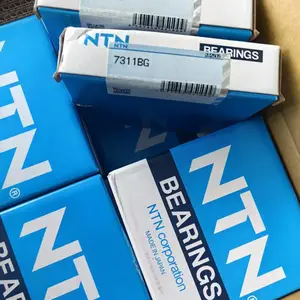

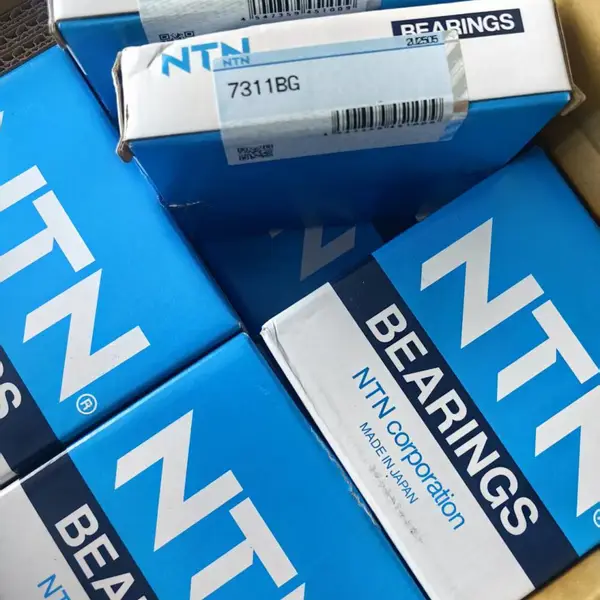

7311BG 单列角接触球轴承 详细说明

一、型号释义

7：角接触球轴承

3：重系列（尺寸更大、承载更强）

11：内径代号，11×5=55mm

B：接触角 40°（大接触角，轴向承载强）

G：钢板冲压保持架

二、标准外形尺寸

内径：55 mm

外径：120 mm

厚度：29 mm

最小倒角半径：r=2 mm，r1=1 mm

重量：约 1.4 kg

三、结构配置

类型：单列角接触球轴承，开放式（无密封）

接触角：40°（B型），轴向承载能力强

滚动体：高精密GCr15轴承钢球，耐磨抗疲劳

保持架：钢板冲压保持架（G），高速稳定、成本低

精度等级：P0级（普通级），可选P5/P4精密级

四、轴承材质

内外圈及钢球采用GCr15高碳铬轴承钢，淬火回火处理，硬度HRC60–64；组织均匀、尺寸稳定、耐磨抗冲击，适配重载、中高速工况。

五、核心技术参数

基本额定动载荷Cr：79 kN

基本额定静载荷Cor：56.5 kN

极限转速：脂润滑5500 rpm，油润滑**7300 rpm

工作温度：-40 ℃ 至 120 ℃

六、使用特性

1. 承载能力强：40°大接触角，可同时承受大径向载荷+单向大轴向载荷，刚性好。

2. 重系列设计：73系列尺寸大、壁厚足，适配重载、冲击载荷工况。

3. 高速性能优：开放式散热好，钢板保持架轻量化，中高速运转稳定低噪。

4. 安装灵活：可**DB（背对背）、DF（面对面）、DT（串联）**成对安装，预紧后提升主轴刚性。

5. 耐用可靠：材质耐磨抗疲劳，适配恶劣工业环境，使用寿命长。

七、核心优势

大承载：40°接触角+重系列，径向/轴向承载双强

高刚性：壁厚足、结构稳，抗变形能力强

性价比高：钢板保持架，成本低、高速稳定

通用性强：国标尺寸，多品牌互换，拆装维护便捷

八、适用范围

工业减速机、大型电机、压缩机

泵阀、风机、冶金矿山机械

工程机械、注塑机、钻采设备

需承受重载、单向大轴向力的中高速回转部位
