Product Overview

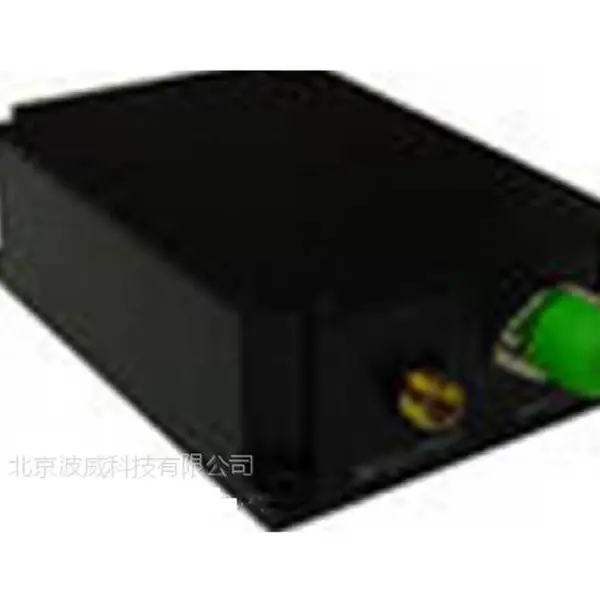

The Optilab PR-10-H-M is a 10 GHz bandwidth high-gain PIN photodiode receiver module designed for RF over fiber, antenna remoting, and broadband RF signals transmission applications using single mode optical fiber. The PR-10-H-M utilizes a wide bandwidth PIN photodiode plus a high-gain Trans-Impedance Amplifier (TIA) of 2000 that provides optical to RF conversion to the frequency range beyond 10 GHz. The PR-10-H-M is a highly linear O/E converter that can be used for every type of analog and digital signal, with remote status monitoring through an RS-232 I/O interface. When the PR-10-H-M receiver module is linked with the LT- 15-M lightwave transmitter module, the combination provides an excellent solution for ultra-wideband RF to fiber conversion applications, go to for more details.

Applications

â—†Wideband RF Transmission over Fiber

â—†RF/IF Signal Distribution

â—†Satcom microwave antenna signal distribution

â—†EW Systems

â—†Broadband delay-line and signal processing

â—†Radar system calibration

â—†Phased and interferometric array antenna

Features

â—†RFoF high-gain, 0.01 GHz to 10 GHz

â—†High RF output power

â—†Highly Linear for Analog Transmission

â—†High TIA Gain of 2000

â—†RS-232 Monitor Interface

â—†Housing shields RF and thermal interference

â—†3 year warranty standard
