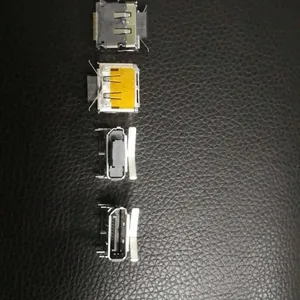

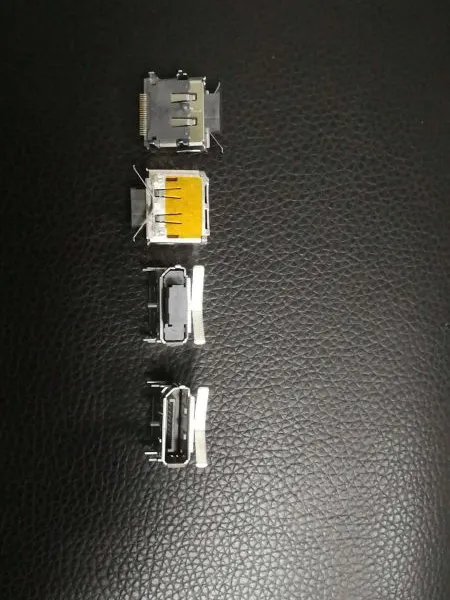

DP connector, SMT type, plating contact:1u"& 15u"& 30u"

HF Compliance

Product General Characteristic:

Category:                        I/O Series

Overview:                            DP

Component Type:                        Receptacle

PCB Mount Type:                        SMT

Orientation:                                              N/A

Physical Characteristic:

Housing Material:                        LCP

Contact Material:                        Brass C2680

Plating Material on Contact Area:           Au

Plating Thickness on Contact Area:             1u"& 15u"& 30u"

Pitch (mm[in]):                        N/A

Tail Length (mm[in]):             0.35mm[0.0138in]

Locating Post (s) (mm[in]):                       N/A

Circuits:                       20Pin

Durability:                      10000Cycles

Housing Color:                       Black

Electrical Characteristic:

Min. Current Per Contact (A):            Min. 0.***

Max. Voltage (V):                      30V AC(RMS)

Solder Process Characteristic:

Solder Process Type:                     IR Reflow

Max. Process Temperature(℃):           260℃

Duration at Max. Process Temperature(s):10s

Environment Characteristic:

RoHS/ Halogen Free (HF) Compliance:  HF Compliance

Others:

Packaging:                       REEL
