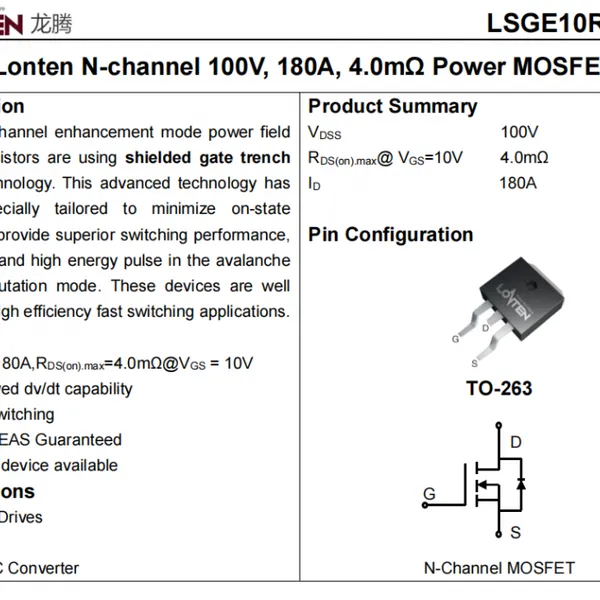

LSGE10R040HC

Product Summary VDSS 100V RDS(on).max@ VGS=10V 3.m惟 ID 180A

Description These N-Channel enhancement mode power field effect transistors are using shielded gate trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance,provide superior switching performance, and with stand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency fast switching applications. Features 飦� 100V,180A,RDS(on).max=4.0m惟@VGS = 10V 飦� Improved dv/dt capability 飦� Fast switching 飦� *** EAS Guaranteed 飦� Green device available Applications 飦� Motor Drives 飦� UPS 飦� DC-DC Converter
