| 品牌：speag | 新旧程度：9成新 | 产品数量：1 |
| 类型：进口仪表 | 型号：V45BS | 设备所在地：深圳 |
| 设备生产产地：瑞士 | 材料： | 加工定制： |
| 输出信号： |
SHO-V2RP/LP
Hand Phantom for PDA (Wide) Phones
Right and Left antropomorphic hand phantoms delivered with positioning spacers V2 to test PDA (wide) mobile phones in talk mode with SPEAG SAM Head V4.5/CTIA/BS and in data mode SHO-V2LP & SHO-V2RP with spacer | |
| Application | Assessment of radiation pattern or of total radiated power (in both talk and data modes) of devices with width of between 56 mm - 72 mm |
| Construction | Manufactured of a silicone- and carbon-based mixture (color: black) |
| Compatibilities | CTIA Certification Standard 鈥淭est Plan for Wireless Device Over-the-Air Performance鈥� Revision 3.3 (October 2013) Compatible with the Fixture for Data Mode Testing V1 (SHO-FDMV1) in combination with the corresponding Data Wrist SHO-RP-DWV1and SHO-LP-DWV1 Compatible with the Fixture for Data Mode Testing V2 (SHO-FDMV2) in combination with the corresponding Data Wrist SHO-RP-DWV2 and SHO-LP-DWV2 Compatible with the arms interface of POPEYE V5.x Whole-Body Phantom |
| Spacers | Spacer V2: rugged hollow spacer made of a thin shell of low-loss plastics with a dielectric constant of less than 5.0 and a loss tangent less than 0.05 Spacer V1: made of RF-certified Rohacell foam (only on special request) |
| Accessories | SAM MASK6/15 |
Target Dielectric Parameters | Frequency(MHz)PermittivityElec. Cond.(S/m)30037.10.3645033.90.4383530.30.5990030.00.62145027.90.85157527.50.9180027.00.99190026.71.04195026.61.07200026.51.09210026.31.14245025.71.32300024.81.61 |

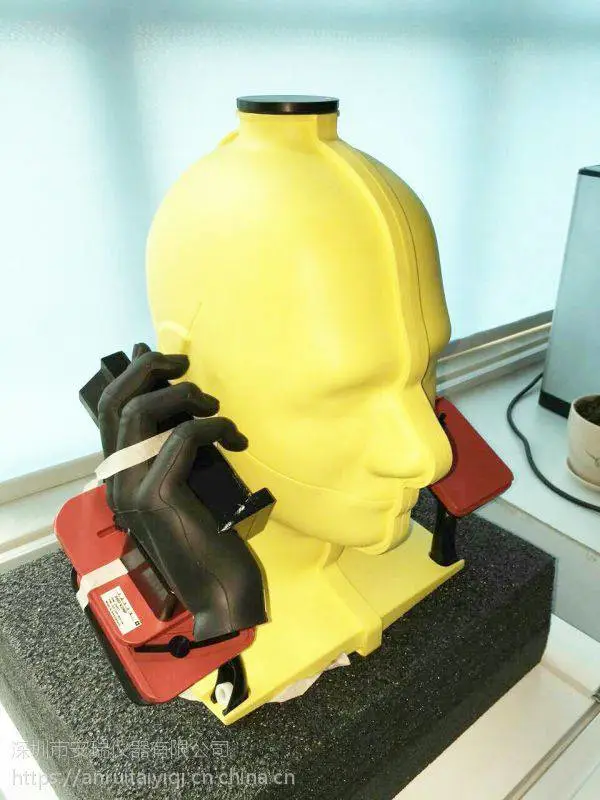

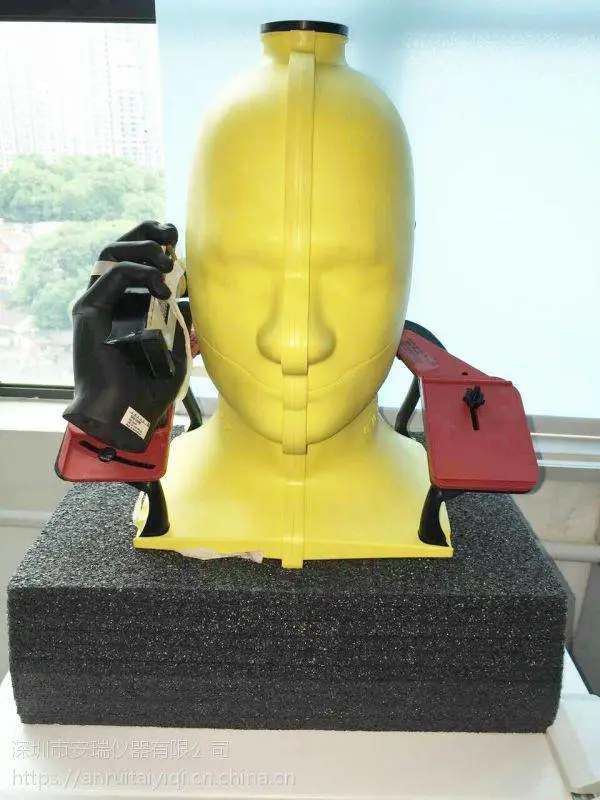

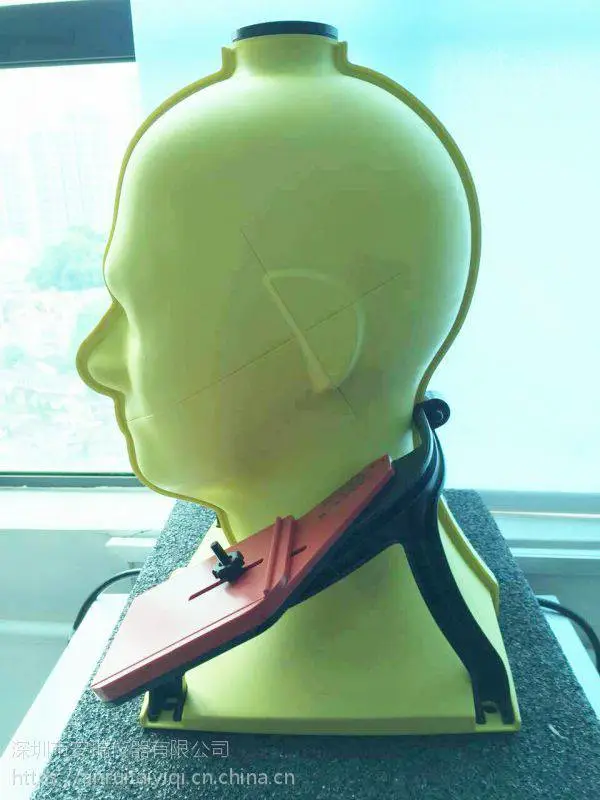

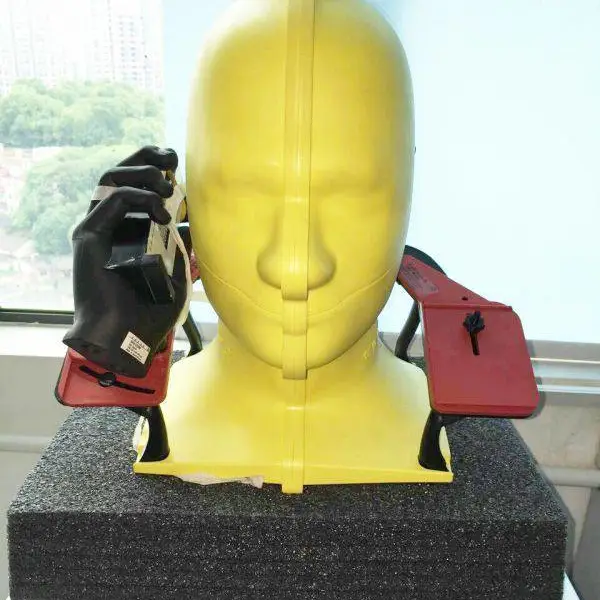

SAM-V4.5BS (CTIA V3.3)
Light-weight gel-filled SAM head model
SAM Head V4.5BS is a light-weight homogeneous anthropomorphic head model which has been designed for assessment of the radiation pattern or total radiated power. Its geometry complies with the SAM data as defined by IEEE SCC34 and CTIA Test Plan for Wireless Device Over-the-Air Performance, Revisions 3.3 (October 2013). It is filled with a broadband head tissue simulating gel with lower weight than the standard liquids and complying with the head target parameters (defined in CTIA Certification Standard 鈥淭est Plan for Wireless Device Over-the-Air Performance鈥� Revisions 3.0, 3.1, 3.2 and 3.3) over a very wide frequency range. | |
| Construction | High precision injection molded PP Integrated positioning lines Sealed top cap for use with 17 mm hexagonal key Filled with a broadband head tissue simulating gel with the dielectric specifications of head tissue from 300 MHz - 6 GHz according to the IEEE/IEC and CTIA standards Revisions 3.0, 3.1, 3.2 and 3.3 Light and robust |
| Shell thickness | 2 卤 0.2 mm (6 mm at ear point) |
| Weight | 30% lighter than phantoms filled with sugar based liquids, i.e. weight is approx. 7.0 kg |
| Dimensions | Width: 250 mm (w/o phone positioner) Depth: 269 mm Height: 394 mm incl. feet |
| Talk Mode Fixture | High precision Talk Mode Fixture (SHO-FTM-V1) for hand phantoms provides minimal uncertainty and easy-to-use |
| Phone Positioner | Integrated lightweight holder, accurate and easy to operate Enables precise positioning in both touch and 15掳 "cheek" position |
| Mounting on Turntable | 8 mm holes in a plane 210 mm wide x 174 mm deep |
| Compatibilities | The geometry complies with the SAM data as defined by IEEE SCC 34 CTIA Certification Standard 鈥淭est Plan for Wireless Device Over-the-Air Performance鈥� Revisions 3.0, 3.1, 3.2 and 3.3 3GPP TR25.914 鈥淢easurements of Radio Performances for UMTS Terminals in Speech Mode鈥� |
| Options | Travel Case / Car Torso (TCCT) |
Target Dielectric Parameters | Frequency(MHz)PermittivityElec. Cond.(S/m)30045.30.8745043.50.8783541.50.990041.50.97145040.51.2180040.01.4190040.01.4195040.01.4200040.01.4210039.81.49245039.21.8300038.52.4400037.43.43500036.24.45520036.04.65540035.84.86560035.55.06580035.45.27600035.15.48 |
-
