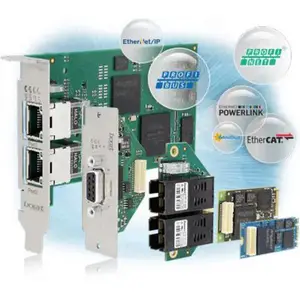

INpact EPL板卡PCIe接口用于Powerlink的工业以太网PC接口

Ixxat INpact 的专用 Powerlink 版本带有预安装的网络协议。它可以轻松地将基于 PC 的 Powerlink Slave 应用程序连接到工业网络，并且基于经过验证的 Anybus 和 Ixxat 技术。

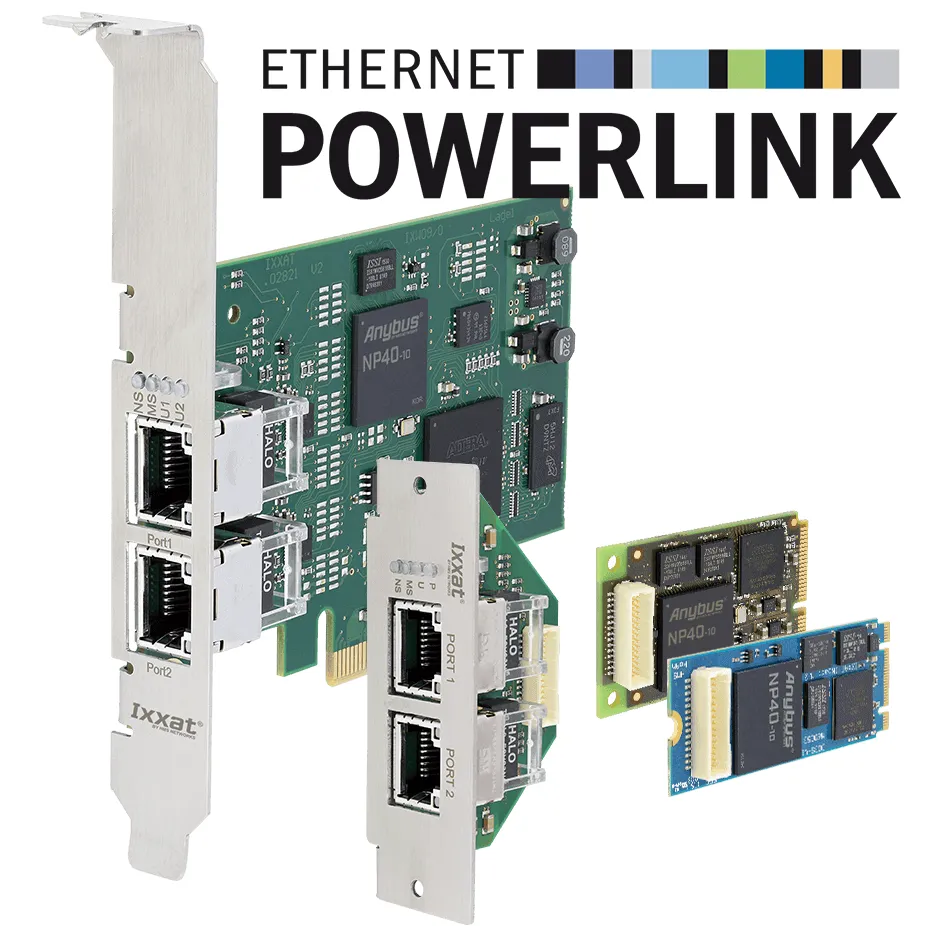

INpact EPL Slave PCIe

Versatile industrial Ethernet PC interface for Powerlink

The dedicated Powerlink version of the Ixxat INpact comes with a pre-installed network protocol. It enables the easy connection of PC-based Powerlink Slave applications to the industrial network and is based on proven Anybus and Ixxat technology.

电源链接功能

支持Ethernet Powerlink V2.0 Communication Profile Specification version 1.2.0（受控节点）

综合集线器

100 Mbit/s，半双工操作

200 ?s 循环时间

支持环冗余

可定制的身份信息

支持1个TPDO和1个RPDO（每个可容纳1490字节）

多达 57343 个 ADI

包含自适应 XDD 文件

支持分段 SDO 传输

轮询响应链

多路复用

支持同步功能

POWERLINK FEATURES

Supports Ethernet Powerlink V2.0 Communication Profile Specification version 1.2.0 (Controlled Node)

Integrated hub

100 Mbit/s, half duplex operation

200 ?s cycle time

Supports ring redundancy

Customizable identity information

Supports 1 TPDO and 1 RPDO (each can hold 1490 bytes)

Up to 57343 ADIs

Adaptable XDD file included

Supports segmented SDO transfer

PollResponse Chaining

Multiplexing

Support for SYNC functionality

轻松编程

INpact 卡带有一个全面的基于 C-API 的 Windows 驱动程序包——能够简单快速地开发客户特定的应用程序——以及用于 Linux 的驱动程序。可根据要求支持 RTX、Intime、VxWorks 和 QNX 等操作系统。

EASY PROGRAMMING

The INpact card comes with a comprehensive C-API based driver package for Windows – enabling simple and rapid development of customer-specific applications – and with drivers for Linux. Operating systems such as RTX, Intime, VxWorks and QNX are supported upon request.

术服务

入门支持

我们通过电话、电子邮件和 Teamviewer 为客户提供支持，以尽可能快地入门。这包括帮助安装 INpact PC 卡和驱动程序，解释所包含的编程示例，并介绍过程数据映射和 PLC 配置。

附加支持

作为一般技术服务，可以按小时提供扩展支持，例如映射过程数据、示例代码的详细介绍等。

TECHNICAL SERVICES

Getting Started Support

We offer our customers support via phone, e-mail and Teamviewer in getting started the quickest way possible. This includes assistance in installation of the INpact PC card and driver, explaining the included programming examples, and giving an introduction to process data mapping and PLC configuration.

Additional Support

Extended support such as mapping process data, detailed introduction to the sample code, etc. can be offered on an hourly base as general technical service.

德国IXXAT,INpactEPL,工业以太网板卡,Powerlink网卡,powerlink转pcie
